Shock Reservoir Nitrogen Caps - Fox 2.5

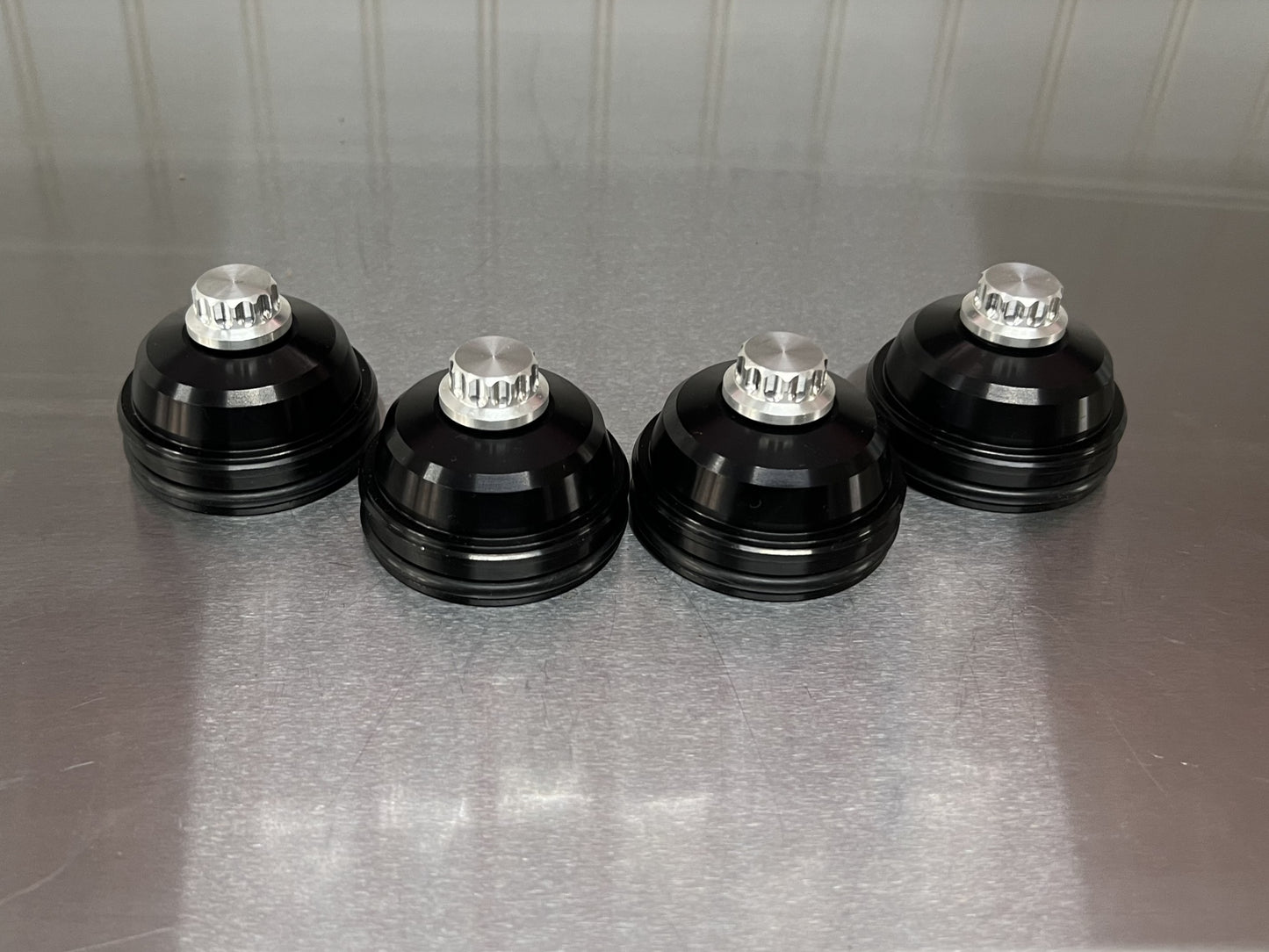

BLACK MAIN CAP W/ BARE ALUMINUM SCHRADER CAP

SOLD AS SET OF 4

This is a replacement endcap for the 2.5" FOX Shocks found on most UTV's (Polaris RZR1000/Turbo, Honda Talon R, Yamaha YXZ1000, Can Am X3 / Maverick, Kawasaki, Arctic Cat, Etc)

These RACE / HD Endcaps have been designed with many great features to upgrade the OEM endcaps helping reduce / eliminate failures and damage from rocks, debris, leaking rubber needle valves that will render your shock useless causing a DNF or abrupt end to your trail ride.

Features we have included are:

CNC Billet Aluminum Construction

Pre-installed Nickel Plated Schrader Valve (to eliminate the prone to leaking OEM rubber needle valve)

Fully recessed Schrader valve that reduces / eliminates damage due to rocks/debris/etc to the valve causing nitrogen loss and shock failure

CNC Billet Aluminum Schrader Cap with O-ring (integrated into the recess to provide extra support and sealing out dirt)

Conical shape to promote a smaller area for rocks/debris to hit as well as cause objects to glance off

Schrader valve is fully accessible utilizing many of the no-loss chucks on the market (Race-Tech nitrogen fill tool is what we use)

Ready to install with All O-rings included (reuse your existing snap ring)

Schrader cap can be hand tightened OR use a 5/8" / 16mm box end wrench 12pt

If you aren't sure what size shocks you have you can measure the outside of the reservoir (approximately 2.60") or you are welcome to use the contact us form and we can assist you further.
